25.6 V 51.2 V Lithium Ion Battery Manufacturing Company

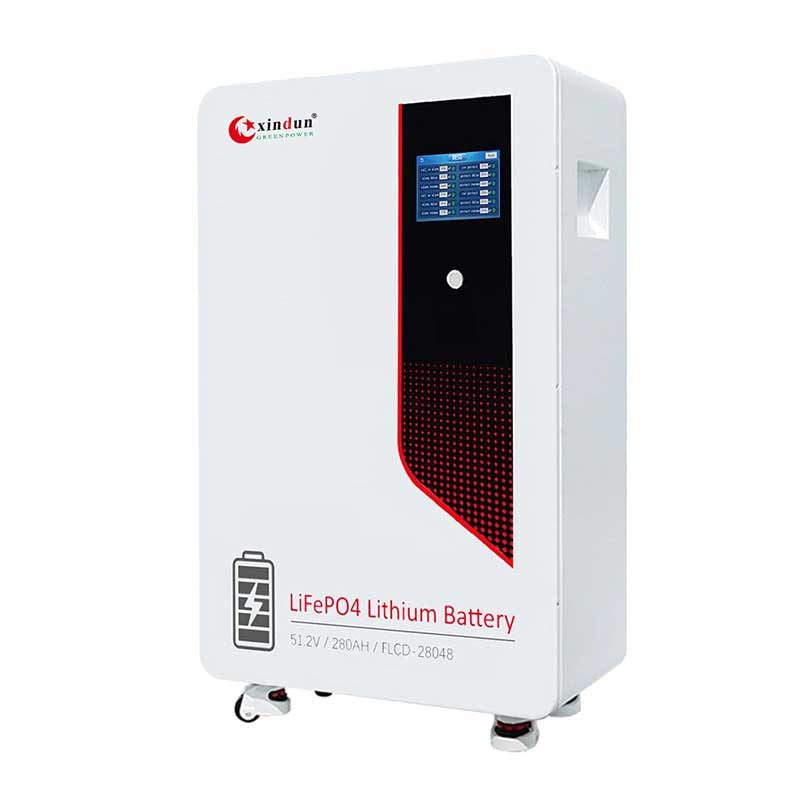

lithium battery wall mounted design, storage energy is 2.56kwh, 5.12kwh, 10.24kwh, 14.34kwh, 25.6 v, 51.2 v 100Ah 200Ah, cycle Life >6000, used for solar power system / ups system / home energy storage system.

Communication : support remotely monitoring and upgrade, support USB drive upgrade the firmware RS485 and CAN inverter RS485 and CAN, RS232 connected to the upper computer
Installation method : wall-mounted design, easy installation, simple operation, stable structure
Temperature : Equipped with intelligent low-temperature heating function, it automatically adjusts according to the temperature environment, with a temperature range from -20°C to 60°C
Smart BMS : Equipped with BMS intelligent management system, real-time detection of battery status, extending battery life
Battery life : Ultra-long lifespan, more than 6,000 cycles, service life ≧ 5 years
As a professional lithium battery manufacturer, Xindun provides 25.6 V lithium ion battery and 51.2 V lithium ion battery, 100ah 200ah, providing efficient and stable energy storage methods, suitable for all household, off grid solar system, RV power supplies, power grid peak shaving and valley filling project,commercial and industrial energy storage systems. And we provide a variety of battery capacity options 2.56kwh, 5.12kwh, 10.24kwh, 14.34kwh, which can meet the needs of different power systems and have strong energy storage capabilities.
Xindun can provide lithium battery customization services according to demand. At the same time, as the source manufacturing company of lithium battery, we can provide preferential lithium battery ex-factory prices.
Lithium Ion Battery Datasheet
Model |
XHS-100256 |
XHS-200256 |
XHS- 100512 |
XHS- 200512 |
Standard voltage |
25.6V |
25.6V |
51.2V |
51.2V |
Standard capacity |
100Ah |
200Ah |
100Ah |
200Ah |
Rated capacity |
2.56KWh |
5.12KWh |
5.12KWh |
10.24KWh |
Working voltage |
21.6V-28.8V |
21.6V-28.8V |
43.2V-57.6V |
43.2V-57.6V |
Standard charging current |
50A |
100A |
50A |
100A |
Standard discharging current |
100A |
200A |
100A |
200A |
Suggested DOD |
80% |
80% |
80% |
80% |
Cycle life |
>6000 cycles |
>6000 cycles |
>6000 cycles |
>6000 cycles |
IP Rating |
IP21(IP21 optional) |
IP21(IP21 optional) |
IP21(IP21 optional) |
IP21(IP21 optional) |
Discharge operating temperature |
-20℃~60℃ |
-20℃~60℃ |
-20℃~60℃ |
-20℃~60℃ |
Charge operating temperature |
0℃~45℃ |
0℃~45℃ |
0℃~45℃ |
0℃~45℃ |
Maximum parallel |
15PCS |
15PCS |
15PCS |
15PCS |
Interface |
RS232/ CAN/ RS485( WIFI/ BT optional) |
RS232/ CAN/ RS485( WIFI/ BT optional) |
RS232/ CAN/ RS485( WIFI/ BT optional) |
RS232/ CAN/ RS485( WIFI/ BT optional) |
Display |
LED touch screen |
LED touch screen |
LED touch screen |
LED touch screen |
Warranty |
5 Years |
5 Years |
5 Years |
5 Years |
Certificate |
UN38.3/ MSDS/CE/ROHS/ FCC |
UN38.3/ MSDS/CE/ROHS/ FCC |
UN38.3/ MSDS/CE/ROHS/ FCC |
UN38.3/ MSDS/CE/ROHS/ FCC |
NW.(kg) |
24kg |
48kg |
48kg |
91kg |
GW. (kg) |
31kg |
55kg |
55kg |
109kg |
Product size( mm) |
410*420*180mm |
540*460*200mm |
540*460*200mm |
790*560*200mm |
Package size( mm) |
530*510*280mm |
620*540*300mm |
620*540*300mm |
850*590*270mm |
Model |
XHL- -280512 |
Product type |
Rechargeable Lithium iron phosphate battery |
Rated voltage |
51.2V |
Rated capacity |
280AH |
Battery level |
14.336KWh |
Battery type |
LFP |
Number of cycles |
6000 cycles(80%DOD,0.5C,25 ℃) |
Service life |
10 Years |
Maximum charging voltage |
57.6V |
Overdischarge voltage |
43.2V |
Maximum charging current |
100A |
Peak charging current |
110A(3s) |
Maximum discharge current |
200A |
Peak discharge current |
220A(3s) |
Gross weight |
137kg |
Package size(W x H x D) |
850*550*270mm |
Communication interface |
RS232/ CAN/ RS485(WIFI/ BT optional) |
Storage conditions |
1 month-20℃~45 ℃ 3 month-20℃~35 ℃ 6 month-20℃~25 ℃ |
Charge Temperature |
(0 ℃~60 ℃) |
Discharge temperature |
(-20 ℃ ~60℃) |
Cooling method |
Natural Cooling |
Installation method |
Floor standing |
Protection grade |
IP30 |
Sea transportation |
MSDS.UN38.3 |
Safety regulations |
CE , FCC , ROHS |
Lithium Ion Battery Features
How to choose an efficient and stable lithium battery? Xindun lithium battery uses A-grade lithium iron battery, with cycle life of more than 6,000 times and service life of ≧5 years. It is more stable and reliable than traditional lead-acid batteries and far exceeds ordinary lithium batteries.
Xindun's lithium battery is also equipped with an intelligent BMS battery management system, which can monitor the battery status in real time, prevent overcharging, over discharging, overcurrent and short circuit, ensure the safe operation of the system, higher charging efficiency and extend battery life.
At the same time, the battery has a wide range of compatibility and can be seamlessly matched with solar systems, off grid inverters and other equipment, and supports up to 15 groups of batteries in parallel, easily expanding the energy storage capacity to meet the power needs of different scales.
Our lithium battery support high rate discharge and operate normally in low temperature environments (-20°C to 60°C). IP21 protection combined with natural cooling function is more efficient and durable, helping users reduce maintenance costs. Xindun's lithium battery have the advantages of high energy density, light weight, and fast charging, meeting different needs from household to industrial and commercial energy storage, providing you with more economical, efficient, and safer energy storage solution
Lithium Ion Battery Intelligent Monitoring
Xindun's lithium battery adopts an intelligent management design. Through WiFi & Bluetooth functions, users can remotely monitor the battery status in real time on the mobile phone APP whether at home, in the office, or traveling, and check the battery power, current, charge and discharge status, voltage, temperature and other core data at any time to improve management efficiency, reduce system failures and abnormalities, provide stable power, achieve efficient energy storage, intelligent management, easy to use, and always keep the system running efficiently.
Lithium Ion Battery Heating Functions
Can lithium battery be charged and discharged in low temperature environments? Our Xindun lithium battery have intelligent low temperature heating functions, and the system performance can be stable even in low temperature environments.
When the ambient temperature is below 0°C, the battery's built in automatic heating system will start, quickly raising the core temperature to above 10°C, thereby restoring normal charging and discharging capabilities and preventing the battery from performing poorly or being damaged at low temperatures. This function is particularly important for high latitude cold areas, winter power supply needs, and outdoor and mobile applications (such as RVs, camping, and power reserves).
Xindun's low temperature heating technology not only improves the adaptability of lithium battery, but also combines with an intelligent BMS protection system to effectively prevent low temperature charging from damaging the battery, extend battery life, and allow users to obtain a stable and safe energy storage supply under any climatic conditions.
Lithium Ion Battery In Parallel
Xindun's lithium battery has a powerful expansion function and can support up to 15 units in parallel. Whether the battery needs to be used in parallel needs to be expanded according to the actual power demand to meet the energy storage needs of different scales. Whether it is a home solar system, small commercial energy storage, or industrial grade backup power supply, users can flexibly add battery packs according to actual power consumption to build a larger capacity energy storage system.
After multiple groups of batteries are connected in parallel, they can still maintain stable high rate discharge performance. When facing high power load requirements, they can also continue to provide sufficient power without voltage drops, ensuring the normal operation of various equipment.
Whether it is need for larger energy storage capacity or later expansion of energy needs, Xindun's lithium battery can help users flexibly expand the needs of energy storage systems through parallel connection.
Xindun Lithium Ion Battery Installation Cases
Xindun's lithium battery adopts wall mounted design, which saves installation space and is simple and convenient to operate. The lithium battery energy storage system can easily cope with the lack of sunlight, power outages, and power outages at night. It is usually used in conjunction with solar power system. When there is sufficient sunlight during the day, it efficiently stores the electricity generated by the solar panels; at night or on rainy days, it stably releases the stored electricity to achieve 24 hour uninterrupted power supply. It provides power for various load devices in the home, such as lighting, refrigerators, and televisions. Reduce dependence on traditional power grids and reduce electricity costs. We have accumulated a wealth of successful use cases. If you are interested, you can contact the Xindun team at any time.
lithium Ion Battery Manufacturing Company
As a specializing lithium battery manufacturing company, Xindun has more than 20 years of rich production experience and has always provided customers with high quality lithium battery and efficient energy storage solutions. We also provide powerful storage capacity to help users around the world provide stable power support in situations such as unstable power supply and power outages. It is widely used in home energy storage, commercial backup power, solar power systems and other fields. And with a modern production plant of more than 2,0000 square meters and a professional R&D team, we strictly control the research and development and production of lithium battery to ensure stable product performance, long service life, safety and reliability. At the same time, we also provide comprehensive after sales guarantee services and special customization services, such as product LOGO, color, parameters, etc., to meet diverse needs. Favorable factory prices are waiting for you to consult!
Xindun Service Team and Cooperation Partners
Xindun participates in dozens of offline solar & energy storage exhibitions and training exchanges every year, communicates face to face with the audience, and jointly discusses the future trends of solar power systems such as lithium battery and inverters, promotes the green development of global energy storage systems, and reduces electricity costs.
Lithium Ion Battery Certification
A good lithium battery product is not only recognized by customers, but also certified by international testing. Xindun's lithium battery have strictly passed multiple international certifications such as RoHs, CE, FCC, MSDS, UN38.3, etc., and meet the battery standards of various regions around the world. It has become one of the most popular energy storage systems in the world. Choose Xindun to become a trustworthy partner.
