OEM Hybrid Solar Power Inverter 4.3KW-12.3KW

Input Voltage: 24V/48VDC | Output Voltage: 220/230/240VAC±2% | Solar Charging: MPPT | PV Input Voltage: 40V/80V-500VDC | Mode: On Grid & Off Grid & Hybrid & Battery-less Mode

1 : The RGB LED ring light design are adopted, a total of 8 colors with multiple transformation methods.

2 : Equipped with dual AC output ports, it can supply power to multiple loads at the same time, intelligent load management.

3 : Built-in MPPT solar controller with a wide voltage range 40Vdc (24V model) / 80Vdc (48V model), to achieve the max utilization efficiency of solar energy and improve the overall power income.

4 : Adopting a two-way energy storage design, it supports solar and mains bidirectional charging, helping customers achieve energy self sufficiency and reduce electricity costs.

5 : Equipped with RS485 communication function, remote real time monitoring and intelligent management, reducing manual inspection costs and improving operational efficiency.

6 : Supports on grid, off grid, hybrid and batteryless modes. Users can flexibly switch according to actual needs.

7 : It has a lithium battery BMS communication interface, which seamlessly connects with the system to ensure safe operation of the battery, extend its service life, and reduce maintenance costs.

About HFP-C Series Hybrid Solar Power Inverter

HFP-C series is a on grid and off grid hybrid solar inverter with a large disc design of LED ring RGB light strip. The lighting color, lighting brightness, effect speed, effect presentation, data effect setting, etc. of the RGB light strip can be freely adjusted by users. There are eight colors of blue, green, light blue, pink, yellow, purple, orange, and white blue display options. Users can choose according to their own preferences. When used, it can not only provide stable inverter performance, but also obtain beautiful appearance design, enhance customer experience and environmental atmosphere. At the same time, it supports dual AC output, which is divided into main output and second output, and can meet multiple power requirements at the same time.

In addition, the hybrid solar inverter has a built in advanced mppt solar controller, an ultra-wide solar voltage input range from 40V to 500V, inverter efficiency of up to 94%, input frequency of 50Hz/60H, and efficient use of solar power. Even working without battery, the inverter can work normally and can effectively use solar power. It is an efficient and reliable choice. It is also equipped with BMS intelligent lithium battery management function to track the status and data of the battery in real time to ensure trouble-free use of the battery and extend the battery life.

Xindun's hybrid solar inverter supports OEM various special designs, such as appearance design, logo, color, etc. Welcome to consult our OEM hybrid inverter factory.

oem hybrid inverter design

oem inverter with RGB light

oem solar inverter with dual output

oem power inverter without battery

wifi solar inverter

lifepo4 battery oem inverter

Hybrid Solar Power Inverter Connection

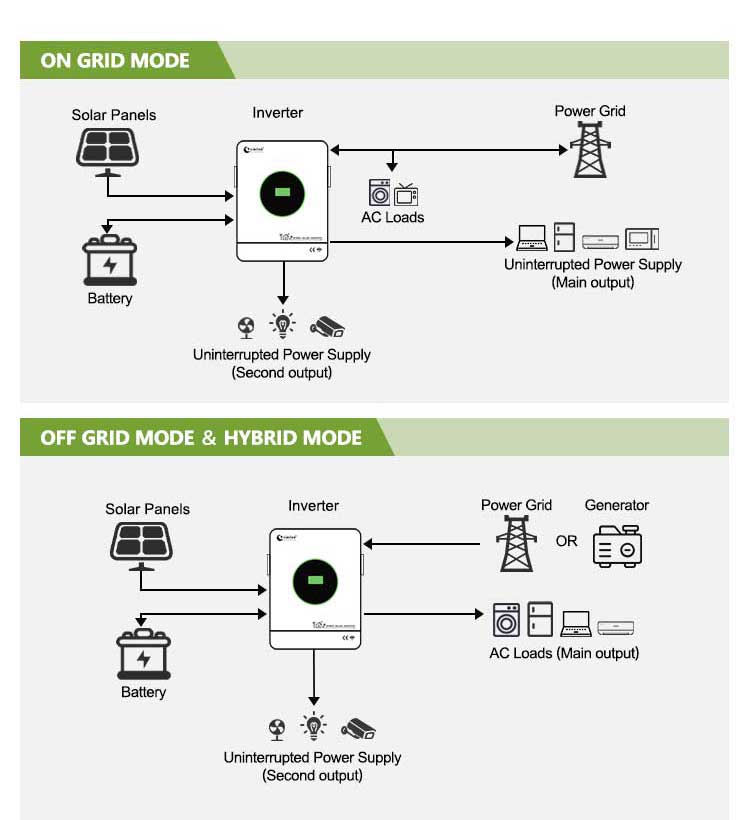

Our hybrid solar power inverter supports three working modes: on grid, off grid and hybrid. Through the wiring diagram below, you can clearly see how the inverter converts the DC power generated by the solar panels into AC power in three different modes to provide a stable power supply for the load. At the same time, it can be used as a UPS to ensure 24-hour power supply.

hybrid solar power inverter wiring

HFP-C Series Hybrid Solar Power Inverter Technical Specification

Xindun's hybrid inverter supports customized voltage, power and parameters, etc. Please tell us your special needs and our professional team will provide you with customized solar power solutions at any time.

Specification
Model ： HFP-C		33224	43224	63248	83248	103248	123248
PV	Max PV Input Power	5000W		7000W	4500W*2	6000W*2	6000W*2
	MPPT Tracking Voltage Range	40VDC-450VDC		80VDC-450VDC
	Rated Voltage	240VDC			280VDC
	Max PV Input Voltage voc (at the lowest temperature)	500VDC
	Max PV Input Current	18A		27A	18A*2	22A*2	27A*2
	MPPT Tracking Channels (Input Routed )	1 Routed			2 Routed
Battery& Charging	Battery Type	Lead-acid Battery/Lithium Battery
		Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board)
	Rated Battery Voltage	24VDC		48VDC
	Battery voltage Range	21~30VDC(default)		42~60VDC(default)
	Max PV Charging Current	120A	150A	120A	150A	180A	200A
	Max AC Charging Current	80A	100A	80A	100A	120A	140A
	Max Charging Current	120A	150A	120A	150A	180A	200A
On-Grid Operation
On-Grid Output (AC)	Rated Output Power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated Output Voltage	220VAC/230VAC/240VAC
	Grid Voltage Range	187VAC~264VAC
	Rated Output Frequency	50Hz/60Hz
	Frequency Range	47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
	Rated Output Current	14.5A/13.9A/13.3A	19.5A/18.7A/17.9A	28.6A/27.4A/26.2A	37.7A/36.1A/34.6A	46.7A/44.9A/42.9A	55.9A/53.5A/51.3A
	Power Factor	＞0.98(Rated Power)
Off-Grid Operation
AC Input	Rated Input voltage	220V /230V/240V
	Mains input voltage range	165VAC-280VAC/ 120VAC~280VAC(Can be set)
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC Output	Rated Output Power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated Output Voltage	220V /230V/240V
	Output Voltage Accuracy	±2%
	Rated Input Frequency	50Hz/60Hz
	Output Frequency Accuracy	±1%
	Output Wave	Pure Sine Wave
Hybrid Operation (Complementary Mode)
AC Input	Rated Input voltage	220V /230V/240V
	Mains input voltage range	187VAC~264VAC
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz)
AC Output	Rated Output Power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated Voltage Rated	220VAC/230VAC/240VAC
	Output Current	14.5A/13.9A/13.3A	19.5A/18.7A/17.9A	28.6A/27.4A/26.2A	37.7A/36.1A/34.6A	46.7A/44.9A/42.9A	55.9A/53.5A/51.3A
Regular Parameters
Maximum Conversion Efficiency (Battery Discharge)		94%(peak value)
MPPT Tracking Efficiency		≥99.9
Transfer Time		10ms(Typical value)
Display		LCD+LED
Cooling Method		Cooling fan in intelligent control
Communication		RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional)
Protection Degree		IP20
Installation		Wall-Mounted
Protection Degree	Battery low voltage alarm	22VDC（default value）		44VDC(default value）
	Battery low voltage protection	21VDC（default value）		42VDC（default value）
	Anti-islanding protection	≤2S
	overload power protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Inverter output short circuit protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Temperature protection	＞90 ℃(Turn off inverter and charging)
Environment	Operating temperature	-10℃~50℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Dimension and Weight
Product Size(LWHmm)		325275102	375297102	390320112	515365117	535462117	630540130
Package Size(LWHmm)		400330167	450352167	465375187	615460212	630557212	730635225
N.W.(kg)		5.5	6.6	8	13	14.5	22
G.W.(kg)		6.4	7.6	9.3	15	17	25
Note: All specifications are subject to change without prior notice
