Hi Frequency Solar Inverter Converter 3.3KW-12.3KW

Input Voltage: 24V/48VDC | Output Voltage: 220/230/240VAC±2% | Solar Charging: MPPT | PV Input Voltage: 40V/80V-500VDC | Mode: On Grid & Off Grid & Hybrid & Battery-less Mode

1. Supports dual AC output and intelligent load distribution. It can supply power to hi power equipment and daily small appliances at the same time. :

2. Adopts hi frequency design, lightweight equipment, built-in mppt solar controller, saves installation space, 94% inverter conversion efficiency, and reduces energy loss. :

3. Supports multiple modes such as on grid, off grid, and hybrid, suitable for different scenarios such as residential, commercial, farms, and remote areas. :

4. Compatible with lithium battery BMS communication real time grasp of operating status, and easy maintenance. :

5.Supports working without battery, reduces initial investment cost and system expenditure. :

6.Supports excess electricity feeding back to the grid, increases additional income. :

7.With RS485 communication and mobile phone APP (WIFI/GPRS) functions, remote monitoring and unified intelligent management can be realized. :

About HFP-S Series Hi Frequency Solar Inverter Converter

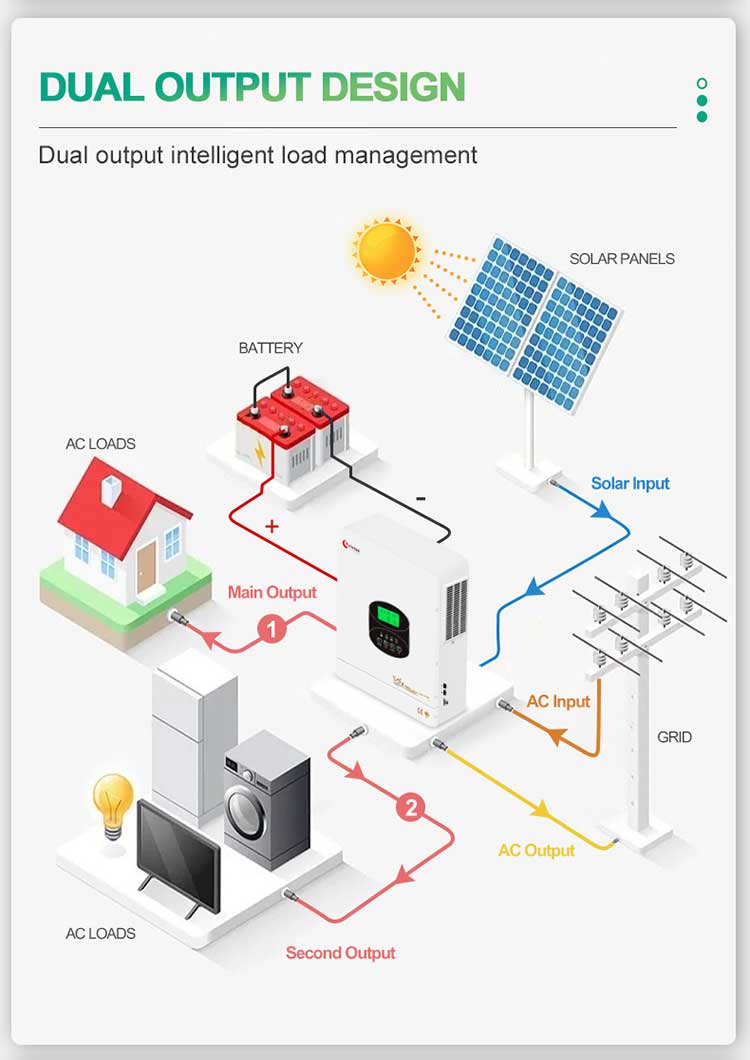

The HFP-S series is a hi frequency on&off grid hybrid solar inverter to achieve "self sufficiency and power feeding to the grid". It adopts dual AC output design, these two output has the same voltage, frequency and phase.

Users can choose to turn it on or off according to their needs:

When turned off, the total power of the two output cannot exceed the rated power of the inverter, and the two AC output is normal.

When turned on: A. When the battery voltage is normal, both the main AC output and the second AC output can supply power normally. B. When the battery voltage drops to the set main circuit cut-off voltage, the main AC output is automatically turned off. At this time, the second AC output can still operate, but the maximum load power is limited to 30% of the inverter rated power to extend the battery life. C. When the battery voltage returns to the set main circuit recovery voltage, the main AC output is automatically restored. D. If the main AC output is turned off due to low battery voltage, but the mains is connected (working in mains mode), the system will automatically restore the main AC output to ensure the normal operation of critical loads.

The AC output ports are the main AC output and the second AC output. The main AC output can power hi power devices such as air conditioners and refrigerators, and the second AC output is used for some small appliances, such as lights and fans. It can meet the needs of multiple loads at the same time and provide a power range of 3.3kw-12.3kw, DC 24V/48V to AC 220V 230V 240V. The solar inverter converter mainly converts the DC power generated by the solar panels or batteries into AC power through the inverter for use by the load. With the built in advanced MPPT solar controller with wide MPPT input voltage range 40Vdc (24V models) / 80Vdc (48V models), the inverter conversion efficiency is as high as 94%, which can achieve efficient power.

We are a mature hi frequency inverter company that can provide various types of hi frequency inverters. If you want to know more about inverter information, wholesalers, traders, etc. are welcome to consult.

HFP-S hi frequency inverter connection

dual ac output solar inverter converter

solar inverter without battery

mppt solar hi frequency inverter

solar converter

LiFePO4 lithium battery BMS solar inverter

RS485 hi frequency solar inverter

wifi solar inverter converter

HFP-S Series Hi Frequency Solar Inverter Converter Technical Parameters

To better understand the performance and configuration of the HFP-S series hi frequency solar inverter converter, we provide the following detailed technical parameters. These specifications will help you choose the model that best suits your business needs and ensure optimal system adaptability. At the same time, we can also provide OEM/ODM parameter customization services.

Specification
Model ： HFP-S		33224	43224	63248	83248	103248	123248
PV	Max PV Input Power	5000W		7000W	4500W*2	6000W*2	6000W*2
	MPPT Tracking Voltage Range	40VDC-450VDC		80VDC-450VDC
	Rated Voltage	240VDC			280VDC
	Max PV Input Voltage voc (at the lowest temperature)	500VDC
	Max PV Input Current	18A		27A	18A*2	22A*2	27A*2
	MPPT Tracking Channels (Input Routed )	1 Routed			2 Routed
Battery& Charging	Battery Type	Lead-acid Battery/Lithium Battery
		Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board)
	Rated Battery Voltage	24VDC		48VDC
	Battery voltage Range	21~30VDC(default)		42~60VDC(default)
	Max PV Charging Current	120A	150A	120A	150A	180A	200A
	Max AC Charging Current	80A	100A	80A	100A	120A	140A
	Max Charging Current	120A	150A	120A	150A	180A	200A
On-Grid Operation
On-Grid Output (AC)	Rated Output Power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated Output Voltage	220VAC/230VAC/240VAC
	Grid Voltage Range	187VAC~264VAC
	Rated Output Frequency	50Hz/60Hz
	Frequency Range	47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
	Rated Output Current	14.5A/13.9A/13.3A	19.5A/18.7A/17.9A	28.6A/27.4A/26.2A	37.7A/36.1A/34.6A	46.7A/44.9A/42.9A	55.9A/53.5A/51.3A
	Power Factor	＞0.98(Rated Power)
Off-Grid Operation
AC Input	Rated Input voltage	220V /230V/240V
	Mains input voltage range	165VAC-280VAC/ 120VAC~280VAC(Can be set)
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC Output	Rated Output Power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated Output Voltage	220V /230V/240V
	Output Voltage Accuracy	±2%
	Rated Input Frequency	50Hz/60Hz
	Output Frequency Accuracy	±1%
	Output Wave	Pure Sine Wave
Hybrid Operation (Complementary Mode)
AC Input	Rated Input voltage	220V /230V/240V
	Mains input voltage range	187VAC~264VAC
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz)
AC Output	Rated Output Power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated Voltage Rated	220VAC/230VAC/240VAC
	Output Current	14.5A/13.9A/13.3A	19.5A/18.7A/17.9A	28.6A/27.4A/26.2A	37.7A/36.1A/34.6A	46.7A/44.9A/42.9A	55.9A/53.5A/51.3A
Regular Parameters
Maximum Conversion Efficiency (Battery Discharge)		94%(peak value)
MPPT Tracking Efficiency		≥99.9
Transfer Time		10ms(Typical value)
Display		LCD+LED
Cooling Method		Cooling fan in intelligent control
Communication		RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional)
Protection Degree		IP20
Installation		Wall-Mounted
Protection Degree	Battery low voltage alarm	22VDC（default value）		44VDC(default value）
	Battery low voltage protection	21VDC（default value）		42VDC（default value）
	Anti-islanding protection	≤2S
	overload power protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Inverter output short circuit protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Temperature protection	＞90 ℃(Turn off inverter and charging)
Environment	Operating temperature	-10℃~50℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Dimension and Weight
Product Size(LWHmm)		325275102	375297102	390320112	515365117	535462117	630540130
Package Size(LWHmm)		400330167	450352167	465375187	615460212	630557212	730635225
N.W.(kg)		5.5	6.6	8	13	14.5	22
G.W.(kg)		6.4	7.6	9.3	15	17	25
Note: All specifications are subject to change without prior notice
