WP China Best Solar Home Inverter Sale Price 1000W-6000W
Input Voltage: 12V/24V/48V/96VDC | Output Voltage: 110/120/220/230/240VAC±2% | Solar Charging: MPPT/PWM | Max PV Open Circuit Voltage: 50V-200V
1 : Multiple energy storage methods
2 : Suitable for any kinds of batteries such as lithium/Gel/AGM, etc.
3 : Inverter can built-in mppt solar controller optional.
4 : WIFI remote mornitoring WIFI, GPRS, RS485.
5 : Low frequency pure sine wave inverter with strong impact resistance.
6 : Accept OEM or print your logo on home inverter
Solar Home Inverter For Sale
Xindun WP series best solar home inverter power range covers 700w to 40kw single-phase output. With multiple energy storage methods: AC charge, generator charge and solar charge, and suitable for any kinds of batteries such as lithium/Gel/AGM, etc. This inverter is aimed at home use, in order to solve the problems in areas without electricity. The home inverter price in China is very competitive compare globally, and it is the first choice of many import traders and retailers to choose a China home inverter supplier. So which China home inverter supplier is good, of course it is a 20-year-old manufacturer Xindun Power.

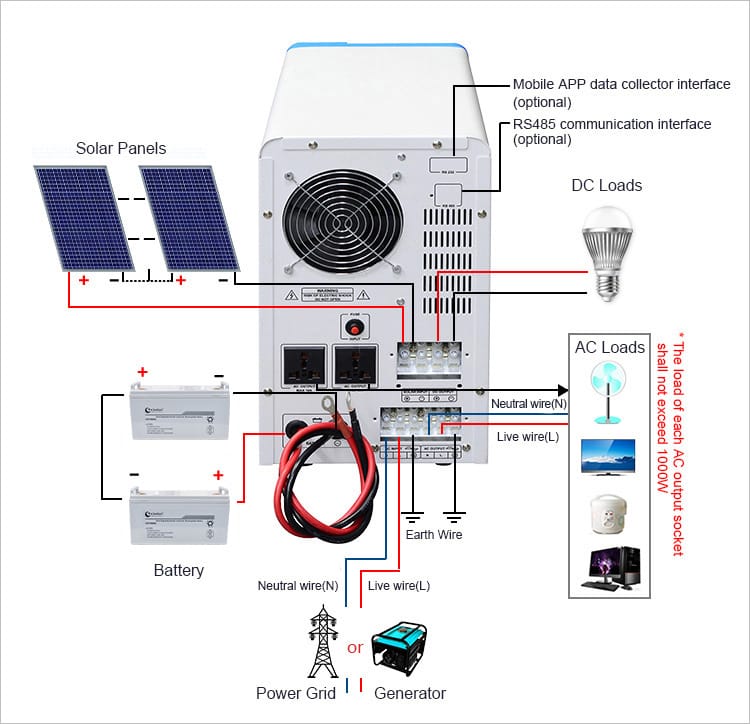

▼ 700W 1000W 1500W Solar Home Inverter Connection Diagram
▼ 2000W 3000W Solar Home Inverter Connection Diagram
▼ 4000W 5000W 6000W Solar Home Inverter Connection Diagram
Solar Home Inverter Technical Parameter
| Home Inverter Specification | ||||||||||
| Model WP | 70112/24 | 10212/24 | 15224/48 | 20224/48 | 30224/48 | 35248/96 | 40248/96 | 50248/96 | 60248/96 | |
| Rated Power | 700W | 1000W | 1500W | 2000W | 3000W | 3500W | 4000W | 5000W | 6000W | |
| Peak Power（20ms) | 2100VA | 3000VA | 4500VA | 6000VA | 9000VA | 10500VA | 12000VA | 15000VA | 18000VA | |
| Start Motor | 0.5HP | 1HP | 1.5HP | 2HP | 3HP | 3HP | 3HP | 4HP | 4HP | |
| Battery Voltage | 12/24VDC | 12/24VDC | 24/48VDC | 24/48VDC | 24/48VDC | 48/96VDC | 48/96VDC | 48/96VDC | 48/96VDC | |
| Max AC charging current | 0A~20A（Depending on the model, The maximum charging power is 1/4 of the rated power） | |||||||||
| Built-in solar controller charging current (optional) | 10A~60A(PWM or MPPT) |
24/48V |
48V(PWM:10A~120A/MPPT:10A~100A) /96V(50A/100A(PWM or MPPT)) | |||||||
| Size(L*W*Hmm) | 345*170*290 | 410*225*390 | 490*260*500 | |||||||
| Packing Size(L*W*Hmm) | 410x235x345(1pc)/490x425x358mm(2pcs) | 473*288*445 | 550*320*560 | |||||||
| N.W.(kg) | 10(1pc) | 12.5(1pc) | 15(1pc) | 23 | 28 | 32 | 45 | 48 | 50 | |
| G.W.(kg) | 12(1pc) | 14.5(1pc) | 17(1pc) | 26 | 31 | 35 | 49 | 52 | 54 | |
| Installation Method | Tower | |||||||||
| Parameter | ||||||||||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | ||||||||
| AC Input Voltage Range | 73VAC~138VAC(110VAC） / 83VAC~148VAC（120VAC） / 145VAC~275VAC（220VAC） / 155VAC~285VAC（230VAC） / 165VAC~295VAC（ 240VAC） | |||||||||
| AC Input Frequency Range | 45Hz~55Hz（50Hz) / 55Hz~65Hz（60Hz) | |||||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||
| Output | Efficiency(Battery Mode) | ≥85% | ||||||||
| Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | |||||||||
| Output Frequency(Battery Mode) | 50Hz±0.5 or 60Hz±0.5 | |||||||||
| Output Wave(Battery Mode) | Pure Sine Wave | |||||||||
| Efficiency(AC Mode) | >99% | |||||||||
| Output Voltage(AC Mode) | 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | |||||||||
| Output Frequency(AC Mode) | Follow input | |||||||||
| Output waveform distortion(Battery Mode) |
≤3%（Linear load） | |||||||||
| No load loss(Battery Mode) | ≤2.5% rated power | |||||||||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | |||||||||
| No load loss (Energy saving Mode) |
≤10W | |||||||||
| Battery Type | VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage) | ||||||||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) |
|||||||||
| Protection | Battery undervoltage alarm | Factory default: 11V（Single battery voltage） | ||||||||
| Battery undervoltage protection | Factory default: 10.5V（Single battery voltage） | |||||||||
| Battery overvoltage alarm | Factory default: 15V（Single battery voltage） | |||||||||
| Battery overvoltage protection | Factory default: 17V（Single battery voltage） | |||||||||
| Battery overvoltage recovery voltage | Factory default: 14.5V（Single battery voltage） | |||||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||
| Temperature protection | >90°C（Shut down output） | |||||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | ||||||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | |||||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||||||||
| Inside Solar controller (Optional) |
Charging Mode | PWM or MPPT | ||||||||
| PV Input Voltage Range | PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system); 120V-176V(96V system) MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system); 120V-240V(96V system) |
|||||||||
| Max PV Input Voltage(Voc) (At the lowest temperature) |
PWM: 50V(12V/24V system); 100V(48V system); 200V(96V system) / MPPT: 150V(12V/24V/48V system) | |||||||||
| PV Array Maximum Power | 12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A); 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48V system : 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)/6720W(PWM 120A)/5.6KW&11.2KW(MPPT 100A/200A); 96V system: 5.6KW(50A)/11.2KW(100A)； |
|||||||||
| Standby loss | ≤3W | |||||||||
| Maximum conversion efficiency | >95% | |||||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | |||||||||
| Transfer Time | ≤4ms | |||||||||
| Display | LCD | |||||||||
| Thermal method | Cooling fan in intelligent control | |||||||||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | |||||||||
| Environment | Operating temperature | -10℃~40℃ | ||||||||
| Storage temperature | -15℃~60℃ | |||||||||
| Noise | ≤55dB | |||||||||
| Elevation | 2000m（More than derating） | |||||||||
| Humidity | 0%~95% ,No condensation | |||||||||
| Note: All specifications are subject to charge without prior notice | ||||||||||
Solar Home Inverter Packaging & Delivery
In addition to paying attention to the quality of the inverter, Xindun also put a little thought into the packaging of the inverter. Good packaging can reduce after-sales problems of home inverters. Thickened honeycomb cartons are routinely used, and wooden boxes can be added for reinforcement if necessary. In addition, Xindun has sufficient inventory to ensure that a 20-foot container solar home inverters can be delivered within 10 days.
Solar Home Inverter Installation
For some places where the wall-mounted inverter cannot be installed, it is also a good choice to choose the tower inverter of Xindun. Solar home inverters above 4kw are designed with casters for easy movement.
China Solar Home Inverter Company
Xindun Power Company was established in 2006, with more 17 years of valuable experience in the field of professional production, R&D and export of power supply. Solar inverter, energy storage inverter, solar charge controller, energy storage battery and solar power system are our main products. Xindun Power has been sold to more than 100 countries and regions in Asia, Africa, the Middle East, Latin America and other countries and regions. It is widely used in different industries such as home, commerce, government, finance, electricity, transportation, scientific research institutes, manufacturing, new energy and other industries. Its stable performance and excellent performance are generally recognized by users.
China Solar Home Inverter Producer
Xindun is a professional solar home inverter producer in China. 10000 square meters production workshop, equipped with 2 PCB assembly lines, 10 product assembly lines and 1 pre assembly line for high-power home inverter products. The assembly line of small-power home inverter products is double side non power chain type, which is easy to use, noise free and can realize flexible production. It can produce two lines of one product at the same time, or two different product models can be produced online at the same time, with an annual production capacity of 64000 sets. The SMT welding process of circuit board is processed by professional manufacturer with quality assurance, which can ensure the product quality. The company's parts replacement, main body maintenance, circuit debugging, three prevention treatment and inspection processes. Source manufacturing producer, providing competitive and best home inverter price without middlemen to distributors.
