ZRS Single Phase Hybrid Solar Inverter 3Kw 5Kw 8Kw 10Kw 15Kw 20Kw 25Kw

Input Voltage: 48V/96V/192V/240VDC | Output Voltage: 220/230VAC±2% | Solar Charging: MPPT | Max PV Open Circuit Voltage: 150/300/450/500VDC

1 : Low frequency single phase hybrid solar inverter with MPPT

2 : Inverter could be either with or without storage batteries configuration

3 : Inverter always gives priority to using solar energy

4 : Either diesel generator input or gasoline generator input is compatible

5 : Support multiple remote monitoring of communication software rs485 or app

8kw 20kw 15kw 10kw inverter single phase hybrid solar inverter

The Biggest Highlight of ZRS Hybrid Solar Inverter

Let me introduce to you the biggest highlights of the Xindun ZRS series hybrid solar inverter. No matter which working mode is preferred, the inverter always uses solar energy first, and only when the solar energy is insufficient, it will be supplemented by mains power or batteries. Traditional off-grid inverters must be equipped with large-capacity batteries to operate normally. The ZRS hybrid solar inverter can be equipped with batteries, or without batteries, or with small-capacity batteries. When equipped with batteries, the ZRS hybrid solar inverter can power the AC appliances day or night. When no battery is configured, the ZRS hybrid solar inverter will automatically start and run when the solar or mains power is normal, which greatly reduces the cost of the batteries. The solar hybrid inverter has a built-in dual-channel MPPT controller, when it is applied to a solar power system, you only need to connect the inverter to the solar panel correctly to use it.

10kw inverter single phase battery configuration single phase solar inverter without battery

10kw single phase hybrid inverter working modes

10kw single phase inverter working modes

single phase hybrid inverter - off grid inverter vs on grid inverter

3Kw 8Kw 10Kw 15Kw 20Kw Solar Inverter Parameters

All parameters of the solar hybrid inverter have gone through years of research & development experiments and market tests. We can also accept special customization. Please feel free to contact us or the latest parameters and quotations.

15kw inverter 20kw inverter 8kw solar inverter parameters single phase 10kw inverter application

Hybrid Solar Inverter Parameters
Model: ZRS		30248	50248	80296	10396	153192	203192	253240
PV Input	Max input voltage（Voc） (At the lowest temperature)	150V		300V		450V		500V
	MPPT tracking range	60V-120V		120V-240V		240V-360V		300V-400V
	Recommended operating voltage range	60V-80V		120V-160V		240V-320V		300V-380V
	MPPT route number	2
	Max input power	1960W/1960W	3360W/3360W	5000W/5000W	6150W/6150W	8.8KW/8.8KW	11.2KW/11.2KW	14KW/14KW
Battery (Flexible configuration)	Type of battery	Lead-acid battery / Lithium-ion battery(Need to customize)
	Rated voltage	48V		96V		192V	192V	240V
	Max charging current (Can be set,Recommended 0.1C)	70A(PV)/ 35A（Mains）	120A(PV)/ 60A（Mains）	100A（PV）/ 40A（Mains）	110A（PV）/ 60A（Mains)	80A（PV）/ 40A（Mains）	110A（PV）/ 60A（Mains）	110A（PV）/ 60A（Mains）
	Float voltage(Can be set)	55.2V		110.4V		220.8V		276V
	Charge voltage(Can be set)	56.8V		113.6V		227.2V		284V
AC Input	Rated voltage	220V/230V
	Input voltage range	187V~264V
	Rated input frequency	45Hz~55Hz(50Hz)/55Hz~65Hz(60Hz)
	Loss protection time	≤2S
	Reconnection time	30S
AC Output （PV/Battery mode）	Rated output power	3KW	5KW	8KW	10KW	15KW	20KW	25KW
	Rated output voltage	220V/230V
	Output voltage accuracy	±2%
	Rated output frequency	50Hz/60Hz
	Output frequency accuracy	±1%
AC Output (Mains mode)	Rated output power	3KW	5KW	8KW	10KW	15KW	20KW	25KW
	Output voltage	187V~264V
	Output frequency	47~52Hz/57~62Hz
Regular Parameter	Topology	Transformer isolation
	Display	LCD+LED
	Communication(Optional)	RS485/Mobile APP（WIFI monitor or GPRS monitor）
	Operating temperature	-20℃~60℃（Derating above 45°C）
	Storage temperature	-20℃~60℃
	Noise	≤60dB
	Relative humidity	20%~95%(No condensation)
	Highest altitude	2000m（More than derating）
	Machine dimension(LWHmm)	467280508		550380675		620380825
	Package dimension(LWHmm)	530340635		610440800		680440950
	N.W(kg)	40	49	70	75	128	134	140
	G.W(kg)	47	56	80	85	140	146	152
	Installation Method	Tower
Note: All specifications are subject to charge without prior notice

How to Use ZRS Hybrid Solar Inverter

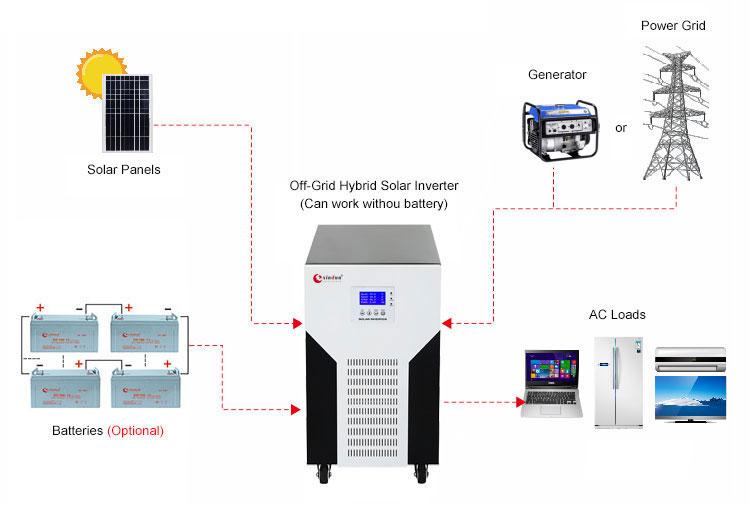

In the figure below, I list several working modes of ZRS series hybrid solar inverter. When solar energy, mains power and battery are available, they will complement each other, solar energy and mains power will charge batteries. When there is no mains power and batteries, but only solar energy, the inverter converts the direct current from the solar panels into alternating current. In this case, it is not practical at night. When there is no solar energy and battery, only the mains power, the inverter will output the electricity from the mains power to the AC terminal after performing stable voltage operation. When the mains power is interrupted, the inverter cannot work. When there is mains power and solar power, but without battery, the inverter will automatically start and run under the mains power and solar power are normal.
Is there anything you don't understand? Please feel free to contact Xindun.

20kw 15kw inverter single phase wiring diagram

how to use single phase hybrid solar inverter

More Details About ZRS Hybrid Solar Inverter

At this point, I believe you have a basic understanding of my hybrid solar inverter. Below I will continue to show you more details about the ZRS solar inverter. I have confidence in my inverter, so I will show it to you without reservation. Low frequency single phase inverter pure sine wave output, has the most excellent loading capacity and is suitable for any electrical appliances on the market. Support multiple communication interfaces to facilitate users to remotely monitor the operation status of the hybrid solar inverter RS485/APP optional.

intelligent 20kw single phase inverter

single phase 10kw inverter with battery

10kw single phase solar inverter heat dissipation 15kw single phase inverter cooling fan 8kw single phase inverter communication interface 15kw solar hybrid inverter pure sine wave 15kw 20kw 8kw 10kw solar inverter transformer

A Leading Hybrid Solar Inverter Manufacturer Xindun Power

Xindun Power Manufacturer specializes in the production of home solar inverters, solar controller, solar generator, ups power supply, water pump inverter used in the renewable energy industry. To ensure high-quality products, we have advanced equipment and processes in place, including automated production lines. The performance of our hybrid solar products have reached CE, IEC and TUV standards.

Maintain our leading position in business based on technological innovation. Technological innovation is the key to price competitiveness, our monthly output reaches more than 10000 units, and there are more than 20 people in the R&D department. As a first-class innovative enterprise, our annual export volume exceeds USD 20 million.

Xindun company is rising and expanding our business team, as well as expanding overseas markets. If you are interested in earing benefits in the field of renewable energy, come join us and let us move towards a better future together.

15kw 20kw 8kw 10kw solar inverter company xindun

Inverter Manufacturer Made In China

8kw 10kw 15kw 20kw solar inverter manufacturer xindun

FAQ about Inverter

1. What are the advantages of single phase solar inverter?
Cost-effectiveness: Single phase solar inverters are a cost-effective option for smaller residential and commercial solar projects because they are typically less expensive than three phase solar inverters.
Simple Installation: Compared to three phase solar inverters, single phase solar inverters are frequently smaller and less complicated to install, which can reduce installation costs and save time.
Compatibility: Single phase solar inverters are an adaptable option for a variety of solar installations because they are compatible with the majority of common home and business electrical systems.

2. Do you only have 8kw hybrid solar inverter? 10kw inverter single phase? 15kw solar hybrid inverter? 20kw single phase inverter?
No, our solar inverter power range is available from 300w to 160kw. Single phase inverter up to 40kw, three phase inverter up to 160kw.

3. Can hybrid solar inverter work without battery?
Not all solar hybrid inverter can work without battery. But Xindun ZRS series solar hybrid inverter can work with or without battery. Welcome to ask wholesale price.
